SUN-6K-SG04LP1-EU

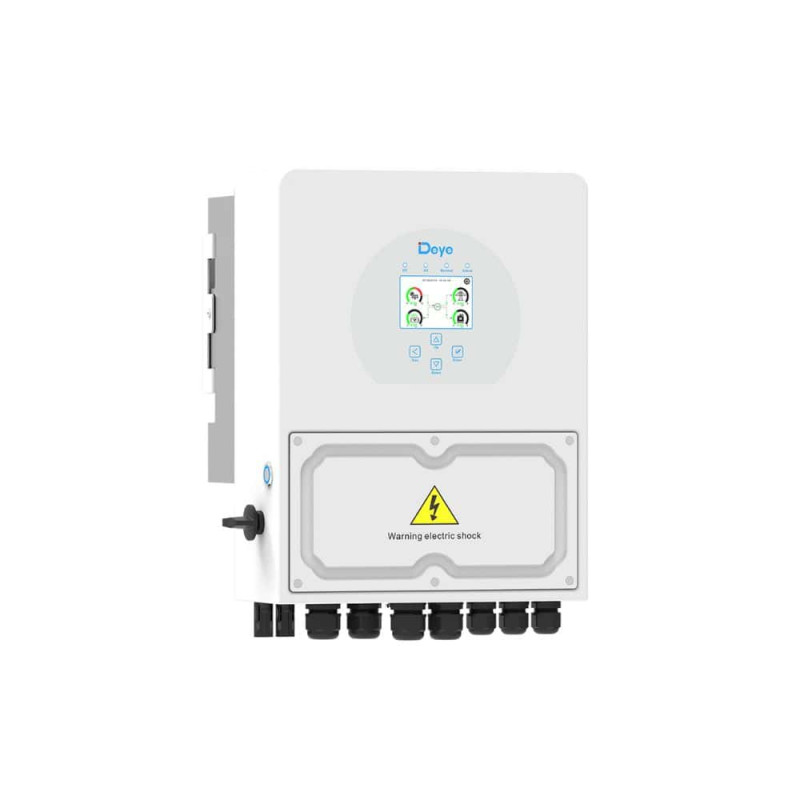

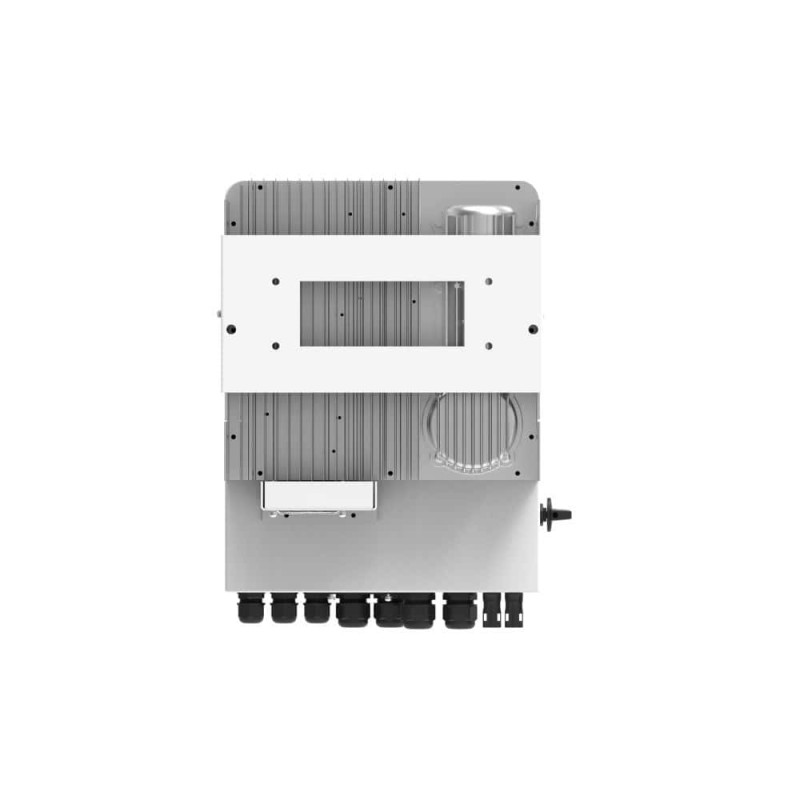

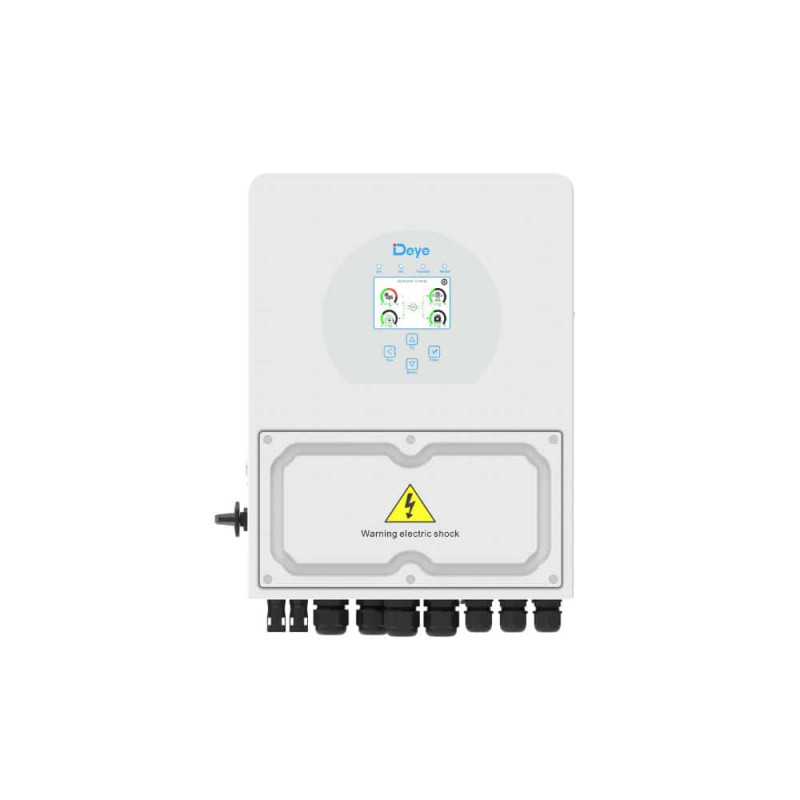

The Deye SUN-3/3.6/5/6K-SG04LP1 series single-phase hybrid inverters are cutting-edge solutions designed for both residential and commercial energy management. Engineered to deliver superior performance and efficiency, these inverters support a wide range of functionalities including energy storage, solar power harvesting, and seamless integration into existing power systems. This series stands out for its robust capabilities and user-friendly features.

Key Features

• High Charging and Discharging Capacity: The inverter series boasts a maximum charging and discharging current of 140A, providing exceptional energy management for storing and utilizing energy. Whether you are drawing power from the grid or a renewable source, this capability ensures efficient handling of energy flows.
• Compatibility with Diesel Generators: The inverters are designed to support energy storage from diesel generators, enhancing their versatility in providing uninterrupted power supply. This feature is particularly beneficial in scenarios where grid reliability is an issue.
• Scalable Parallel Operation: The Deye inverters allow up to 16 units to be connected in parallel, both for on-grid and off-grid operations. This scalability is crucial for expanding system capacity and improving reliability in larger installations.
• Battery Compatibility and Management: Compatible with both lead-acid and lithium-ion batteries, the inverters feature a self-adaptation strategy to interface seamlessly with Battery Management Systems (BMS) for lithium-ion batteries. This ensures optimal battery performance and longevity.
• Flexible Battery Configuration: Multiple batteries can be connected in parallel to increase the overall storage capacity, making the system adaptable to growing energy needs.
• AC Coupling for Retrofit: These inverters can be easily retrofitted into existing solar power systems using AC coupling. This enhances the flexibility and utility of previously installed solar infrastructure.
• User-Friendly Interface:
  • Six configurable time periods for battery charging and discharging allow users to tailor energy usage patterns to their specific needs.
  • The colorful touch LCD interface provides an intuitive user experience for monitoring and managing the system.
  • With an IP65 rating, these inverters are well-protected against environmental elements, making them suitable for outdoor installations.

Technical Specifications

• Battery Input Data:
  • Battery Voltage Range: 20-30V/40-60V
  • Maximum Charging/Discharging Current: Up to 140A, depending on the model
  • Maximum PV Input Power: Up to 7800W (model-dependent)
  • Maximum PV Input Voltage: 500V
  • MPPT Voltage Range: 150-425V
• AC Input/Output Data:
  • Rated AC Input/Output Active Power: Up to 6000W
  • Peak Power for Off-Grid Operation: Twice the rated power for 10 seconds
  • Power Factor Adjustment: 0.8 leading to 0.8 lagging
  • Maximum Efficiency: 97.6%
  • Euro Efficiency: 96.5%
  • MPPT Efficiency: Greater than 99%
• Comprehensive Protection: Features integrated DC polarity reverse connection protection, AC output overcurrent and overvoltage protection, short circuit protection, thermal protection, and extensive monitoring capabilities for system safety and stability.
• Compliance and Standards: The inverters conform to various international standards, including IEC 61727, IEC 62116, CEI 0-21, EN 50549, and more, ensuring they meet global quality and safety benchmarks.
• General Specifications:
  • Operating Temperature: -40 to +60℃ (with derating above 45℃)
  • Humidity: 0-100%
  • Altitude: Up to 2000m
  • Noise Level: Less than 30dB
  • Enclosure Dimensions: 330 × 433 × 229 mm
  • Weight: 17kg
  • Cooling: Natural cooling with optional intelligent air cooling
• Connectivity Options: Equipped with communication interfaces including RS485, RS232, and CAN, and support for monitoring modes via GPRS/WIFI/Bluetooth/4G/LAN (optional).

The Deye SUN-3/3.6/5/6K-SG04LP1 hybrid inverters are engineered for efficiency, reliability, and user convenience, making them ideal for modern energy systems that demand flexibility and robust performance. Whether for upgrading existing installations or deploying new energy solutions, these inverters provide the necessary features and capabilities to meet a wide array of energy management needs.
